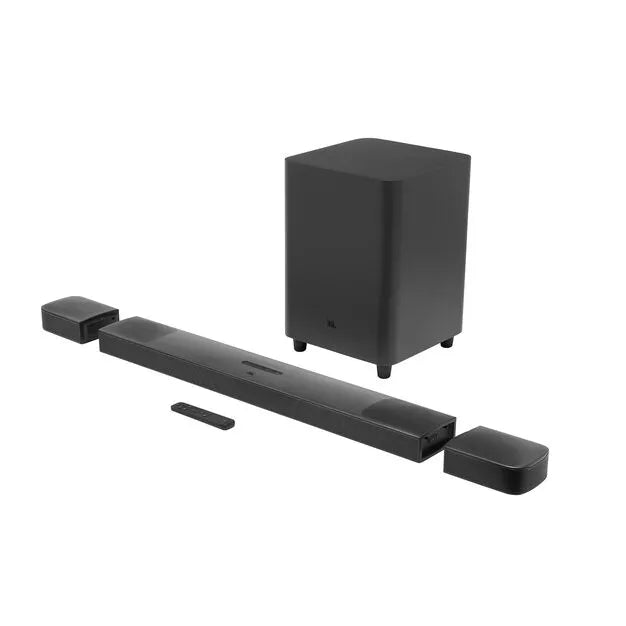

JBL Bar 9.1 True Wireless Surround with Dolby Atmos
رمز التعريف الخاص بالمنتج : JBLBAR913DBLKEP-PR
ملخص عام
The Unmatched 3D Audio Adventure Elevate your viewing or gaming escapades to unparalleled heights. Immerse yourself in the world of Dolby Atmos®, DTS:X™, and four upward-firing speakers, as sound dances effortlessly from the ceiling to your ears, delivering an awe-inspiring, authentic 3D audio experience.
General Specifications
- Channel Configuration - 5.1.4 Channel
- Power Supply - 100 - 240VAC, 50/60Hz
- Battery Charge Time - 3 Hours
- Total Speaker Power Output (Max. @ THD 1%) - 820W
- Main Soundbar Output Power (Max. @ THD 1%) - 400W
- Surround Speakers Output Power (Max. @ THD 1%) - 2 × 60W
- Subwoofer Output Power (Max. @ THD 1%) - 300W
- Soundbar Transducer - 4 × Racetrack Drivers + 2 × Up-Firing Full-Range Drivers + 3 × 0.75 inch / 20mm Tweeters
- Surround Transducer (Per Speaker) - Up-Firing Full-Range Driver + 0.75 inch / 20mm Tweeter
- Subwoofer Transducer - 10 inch
- Operating Temperature - 0°C - 45°C
- Standby Power (Soundbar, Wireless Off) - < 0.5W
- Networked Standby (Soundbar) - < 6.0W
- Networked Standby (Subwoofer) - < 2.0W
- Time to Standby - < 10 Minutes
- European Commission Regulation Compliance - EC No. 1275/2008 & EU No. 801/2013
Audio Specifications
- HDMI In - 1
- HDMI eARC - 1
- HDMI HDCP Version - 2.3
- Signal-to-Noise Ratio - 103dB
- Frequency Response - 34Hz - 20kHz
- Audio Inputs - Optical, Bluetooth, Chromecast, AirPlay 2, USB
Dimensions
- Soundbar Dimensions (Width x Height x Depth) (mm) - 884 x 62 x 120
- Soundbar Dimensions (Width x Height x Depth) (in) - 34.8 x 2.4 x 4.7

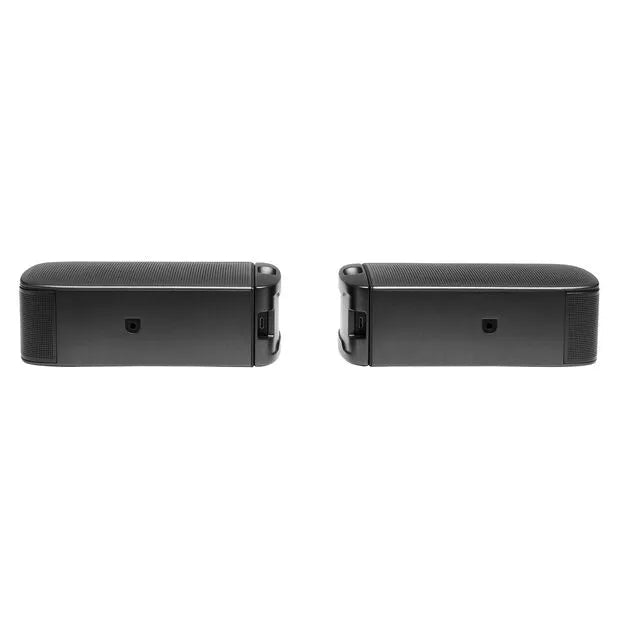

- Detachable Surround Speaker Dimensions (Per Speaker) (mm) - 173 x 60 x 120
- Detachable Surround Speaker Dimensions (Per Speaker) (in) - 6.8 x 2.4 x 4.7
- Subwoofer Dimensions (Width x Height x Depth) (mm) - 305 x 440 x 305
- Subwoofer Dimensions (Width x Height x Depth) (in) - 12.0 x 17.3 x 12.0
- Soundbar Weight (kgs) - 3.64
- Soundbar Weight (lbs) - 8.0
- Detachable Surround Speaker Weight - 0.72kg × 2 / 1.6lb × 2
- Subwoofer Weight - 11.10kg / 24.5lb
Control and Connection Specifications
- USB Port - Type-A
- USB Rating - 5V / 500mA
- Supported File Format - MP3
- MP3 Codec - MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 Sampling Rate - 16kHz - 48kHz
- MP3 Bitrate - 80kbps - 320kbps
- USB Playback - Available in US Version Only (Other Versions: Service Only)
- Bluetooth Version - 4.2
- Bluetooth Profile - A2DP V1.2, AVRCP V1.5
- Bluetooth Frequency Range - 2402MHz - 2480MHz
- Bluetooth Max. Transmitting Power - 13dBm (EIRP)
- Bluetooth Modulation - GFSK, π/4 DQPSK, 8DPSK
- Wi-Fi Network - IEEE 802.11 a/b/g/n/ac (2.4GHz / 5GHz)
- 2.4GHz Wi-Fi Frequency Range - 2412 - 2472MHz
- 2.4GHz Wi-Fi Max. Transmitting Power - 20dBm (EIRP)
- 2.4GHz Wi-Fi Modulation - DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
- 5GHz Wi-Fi Frequency Range - 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
- 5GHz Wi-Fi Max. Transmitting Power - 22dBm (EIRP)
- 5GHz Wi-Fi Modulation - QPSK, BPSK, 16QAM, 64QAM, 256QAM
- 5GHz Wireless Frequency Range - 5180 - 5240MHz (Except Europe), 5725 - 5825MHz
- 5GHz Wireless Max. Transmitting Power - 13dBm (EIRP)
- 5GHz Wireless Modulation - QPSK
